如何檢查Perkins 6.3544發動機氣門間隙間隙

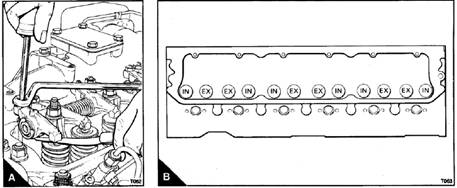

These are checked between the top of the valve stem and the rocker lever (A), with the engine cold. The

這些被檢查的頂部的閥桿和搖桿桿（一），與Perkins 6.3544發動機冷。這個

correct clearances are 0,20 mm (0.008 in) for inlet valves and 0,45 mm (0.018 in) for exhaust valves. The valve

正確的間隙0,20毫米（0.008）進氣閥和0.45毫米（0.018）排氣閥。閥門

positions are shown at (B).

位置顯示（乙）。

Note: Number 1 cylinder is at the front of the engine.

注：1缸Perkins 6.3544發動機在Perkins 6.3544發動機前。

1 Turn the crankshaft in the normal direction of rotation until the inlet valve of number 6 cylinder has just

1在正常旋轉方向旋轉曲軸，直到6缸的進氣閥剛

opened and the exhaust valve of the same cylinder has not closed completely. Check the clearances of the

同一氣缸的排氣閥未完全關閉。檢查的間隙

valves of number 1 cylinder and adjust them, if necessary.

閥的1缸和調整它們，如果有必要。

2 Set the valves of number 2 cylinder as indicated above for number 6 cylinder. Then check/adjust the

2將2缸的閥門設置為數6缸。然后檢查/調整

clearances of the valves of number 5 cylinder.

5號汽缸氣門間隙。

3 Set the valves of number 4 cylinder. Then check/adjust the clearances of the valves of number 3 cylinder.

3定數4缸閥門。然后檢查/調整3缸閥門的間隙。

4 Set the valves of number 1 cylinder. Then check/adjust the clearances of the valves of number 6 cylinder.

4定數1缸閥門。然后檢查/調整6缸閥門的間隙。

5 Set the valves of number 5 cylinder. Then check/adjust the clearances of the valves of number 2 cylinder.

5定數5缸閥門。然后檢查/調整2缸閥門的間隙。

6 Set the valves of number 3 cylinder. Then check/adjust the clearances of the valves of number 4 cylinder.

6定數3缸閥門。然后檢查/調整4缸閥門的間隙。
